| XINPENG GROUND RULE |

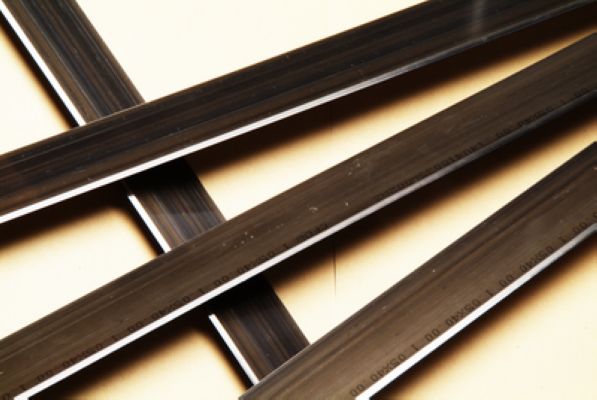

| XINPENG GROUND – (G)
XINPENG GROUND rule specially for cutting very hard and coated materials. It has sharp edge and can reduce the pressure and dust during the process.
|
Hardness |
Body 340HV ( 40 HRC)
Edge 640HV (57 HRC ) |
|
Bendability |
ɑ=90°
R～0.3mm |
|
Thickness |
1.27pt 0.45mm
1.5 pt 0.53mm
2 pt 0.71mm
3pt 1.05mm
4pt 1.42mm |
|
Height |
22 – 60 mm |
|
Edge Type |
GROUND/POLISHED | |
|
|
 |
| |
Xinpeng on three main areas:
-RULE DIE STEEL
-DIE CUTTING RULE
-HEAT TREATMENT |
|
|
|
