| Punches & Spring Punches |

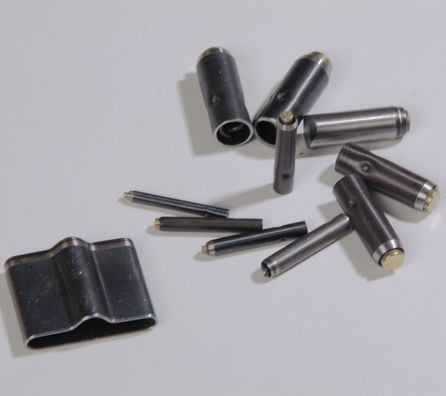

PUNCH & SPRING PUNCH
|
Tube Punch Type : AE |
 |
|
Edge Dia
øA |
Ext. Dia
øF |
Height
H |
|
1.5
2
2.5
3
4
5
6
7
8 |
2.5
3
3.5
4
4.5
6
7
8
9 |
8 (9.5)
8 (9.5)
8 (9.5)
8 (9.5)
8 (9.5)
8 (9.5)
8 (9.5)
8 (9.5)
8 (9.5) |
|
Spring Punch Type: AD |
 |
|
Edge Dia
øA |
Ext. Dia
øF |
Height
H |
|
2
2.5
3
3.5
4
4.5
5
5.5
6
7
8 |
5
5
5
5.5
6
6.5
7
7.5
8
9
10 |
23.80 mm
23.80 mm
23.80 mm
23.80 mm
23.80 mm
23.80 mm
23.80 mm
23.80 mm
23.80 mm
23.80 mm
23.80 mm |
|

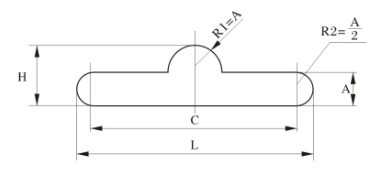

Aircraft Punch Type: AF |
 |
|
L |
12 – 36 mm |
|
C |
8 - 29 mm |
|
H |
7.5 – 12 mm |
|
A |
4 - 7 mm |
|
One Side Punch Type: ZE |
 |
|
Dia ø |
0.5 – 10.0 mm |
|
|
|
|
Type: YE |
 |
|
Dia ø |
3.0 – 8.0 mm | |
|
|
 |
| |
Xinpeng on three main areas:
-RULE DIE STEEL
-DIE CUTTING RULE
-HEAT TREATMENT |
|
|
|
